What Is Settling Tank? Definition & Guide
Quick Definition

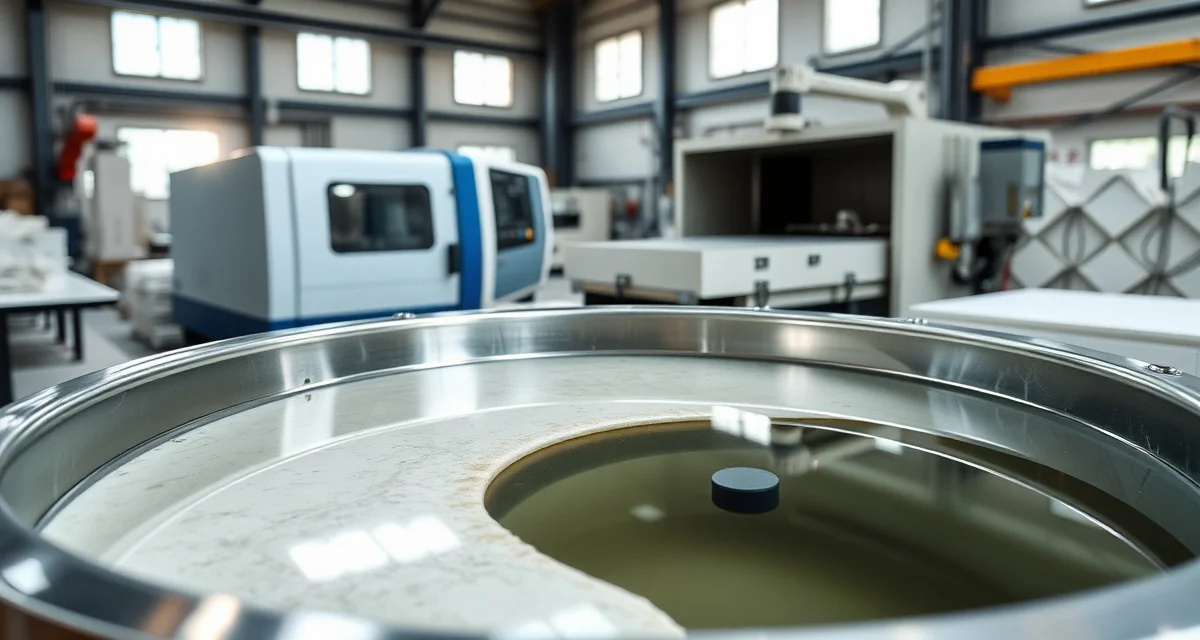

A settling tank (also called a clarifier, sedimentation tank, or slurry tank) is a water treatment system used in countertop fabrication shops to separate stone dust and cutting slurry from the water used by CNC saws, polishers, and other wet-cutting equipment. The tank allows heavy stone particles to settle to the bottom while relatively clean water is recycled back through the machines - reducing water consumption, preventing drain contamination, and keeping the shop in compliance with environmental regulations.
TL;DR
- Settling tanks separate stone dust/slurry from machine cutting water
- Required for environmental compliance in most US jurisdictions - you cannot dump stone slurry down drains
- Typical systems cost $2,000-$15,000 depending on capacity and complexity
- Shops recycle 80-95% of their cutting water through settling tank systems
- The settled sludge (stone dust + water) must be disposed of as solid waste
- Silica-containing sludge (from quartz and granite) has additional handling requirements
- Most mid-size shops need a 500-1,500 gallon system
Settling Tanks: Water Management for Fabrication Shops
Why Fabrication Shops Need Water Treatment
Every CNC bridge saw, router, and polisher in a countertop shop uses water during operation. Water serves two purposes: cooling the cutting tools and suppressing the dust created by cutting stone.
A busy CNC saw uses 3-8 gallons of water per minute during cutting. Over an 8-hour production day, that's 1,440-3,840 gallons of water flowing through the machine - all of it mixed with fine stone particles (slurry).
This slurry cannot be discharged into:
- Municipal sewer systems (violates Clean Water Act and local discharge ordinances)
- Storm drains (environmental violation with significant fines)
- Open ground (soil contamination, especially with silica-containing materials)
A settling tank solves this by allowing the shop to recycle water and properly manage the stone waste.
How Settling Tanks Work
The physics behind settling tanks is simple: stone particles are heavier than water. Given enough time and tank volume, particles settle to the bottom while cleaner water rises to the top.
Basic process:
- Dirty water enters - Slurry from CNC machines flows into the first compartment of the settling tank
- Heavy particles settle - Larger particles (sand-sized) settle within the first compartment
- Water flows through baffles - Water passes over or under dividing walls (baffles) into subsequent compartments
- Fine particles settle - Smaller particles settle in later compartments
- Clean water exits - Relatively clear water is pumped from the final compartment back to the CNC machines
- Sludge accumulates - Settled material builds up on the tank bottom and must be periodically removed
Types of Settling Systems
| System Type | Capacity | Cost Range | Best For |
|---|---|---|---|
| Simple gravity tank | 200-500 gal | $2,000-$5,000 | Small shops, 1-2 machines |
| Multi-chamber gravity | 500-2,000 gal | $5,000-$10,000 | Mid-size shops, 2-4 machines |
| Mechanical clarifier | 500-5,000 gal | $8,000-$25,000 | Large shops, continuous production |
| Filter press system | Varies | $15,000-$50,000 | High volume, minimal sludge handling |
Simple Gravity Tanks
The most common type in small to mid-size fabrication shops. These are typically concrete or steel tanks divided into 2-4 chambers by baffles. Water flows by gravity through the chambers, with particles settling at each stage.
Advantages: Low cost, no moving parts, minimal maintenance Disadvantages: Slower settling, more frequent sludge removal, larger footprint
Mechanical Clarifiers
These use mechanical components (rotating scrapers, inclined plates, or cone-bottom designs) to accelerate settling and automate sludge collection. They're more expensive but handle higher water volumes with smaller footprints.
Filter Press Systems
The premium option. After initial settling, water passes through a filter press that compresses remaining slurry into dry "cakes" of stone waste. The result: very clean recycled water and compact, easy-to-dispose solid waste. Mainly justified for shops running 4+ CNC machines at high utilization.
Sizing Your Settling System
| Shop Profile | Machines Running | Water Flow | Minimum Tank Size |
|---|---|---|---|
| Small (1 saw) | 1 CNC | 3-5 GPM | 200-500 gallons |
| Mid-size (2-3 machines) | 2-3 CNC | 6-15 GPM | 500-1,500 gallons |
| Large (4+ machines) | 4+ CNC | 15-30+ GPM | 1,500-3,000+ gallons |
Rule of thumb: Your settling tank should hold at least 30-60 minutes of water flow capacity. For a shop running two saws at 5 GPM each (10 GPM total), that's 300-600 gallons minimum.
Sludge Management and Disposal
The settled stone sludge must be removed from the tank regularly - weekly to monthly depending on production volume and tank size.
Sludge disposal options:
- Dumpster disposal - Most stone sludge (marble, granite) can be disposed of as general solid waste once dried. Check local regulations.
- Silica-specific handling - Sludge from quartz fabrication contains crystalline silica and may require specific handling procedures. Check with your waste hauler.
- Drying beds - Some shops use outdoor drying beds (lined areas) to dewater sludge before disposal, reducing weight and volume.
- Recycling - Dried stone sludge is occasionally used as fill material or in construction aggregate, though this is uncommon.
Environmental Compliance
Key regulations affecting fabrication shop water management:
| Regulation | Applies To | Key Requirement |
|---|---|---|
| Clean Water Act | All shops | No discharge of pollutants to waterways |
| Local sewer ordinances | Municipal sewer connections | No stone slurry to sanitary sewer |
| OSHA silica standards | Shops cutting quartz/granite | Dust suppression and worker protection |
| EPA stormwater rules | Shops with outdoor cutting | No contaminated runoff to storm drains |
Fines for improper discharge range from $1,000-$50,000+ per violation depending on jurisdiction and severity. A properly maintained settling tank is far cheaper than a single violation.
Maintenance Schedule
| Task | Frequency | Time Required |
|---|---|---|
| Check water clarity | Daily | 2 minutes |
| Clean pump intake screens | Weekly | 15-30 minutes |
| Remove sludge from chambers | Weekly to monthly | 1-4 hours |
| Inspect baffles for damage | Monthly | 15 minutes |
| pH testing (if required locally) | Monthly | 5 minutes |
| Full system cleaning | Quarterly | 4-8 hours |
Frequently Asked Questions
Do I need a settling tank for my fabrication shop?
Yes, if you operate wet-cutting equipment. Environmental regulations in virtually all US jurisdictions prohibit discharging stone slurry into sewers or waterways.
How much does a settling tank cost?
Simple gravity tanks cost $2,000-$5,000. Multi-chamber systems run $5,000-$10,000. Mechanical clarifiers and filter presses can cost $15,000-$50,000+.
How often do I need to clean out my settling tank?
Frequency depends on production volume and tank size. Most mid-size shops clean sludge weekly to bi-weekly. Inspect daily to gauge buildup rate.
Can I discharge settled water to the sewer?
Policies vary by municipality. Some allow discharge of properly settled water; others require additional treatment or zero discharge. Check with your local water authority.
Is stone sludge hazardous waste?
Most natural stone sludge is not classified as hazardous waste. However, sludge containing crystalline silica (from quartz and some granites) may require specific handling. Consult your waste disposal provider.
How much water does a settling tank save?
A well-maintained settling system recycles 80-95% of cutting water, dramatically reducing municipal water usage and costs.
Can I build my own settling tank?
Yes. Many fabricators build settling tanks from concrete blocks, plastic totes, or steel tanks with welded baffles. Ensure adequate capacity, proper baffle placement, and leak-proof construction.
What happens if my settling tank is too small?
An undersized tank doesn't provide enough settling time, resulting in dirty water returning to machines. This clogs nozzles, increases tool wear, reduces cut quality, and can damage pump seals.
Do I need a settling tank for dry cutting?
No. Settling tanks are specifically for wet-cutting water recycling. However, dry cutting creates airborne silica dust, which has its own serious health and regulatory requirements.
How does settling tank maintenance affect production?
Tank cleaning typically requires shutting down wet-cutting equipment for 1-4 hours. Schedule maintenance during off-hours or slower production days to minimize impact.
