What Is Vacuum Lifter? Definition & Guide
Quick Definition
A vacuum lifter is a material handling device that uses suction cups powered by a vacuum pump to grip and lift heavy, flat objects - most notably stone slabs in countertop fabrication shops. Vacuum lifters attach to overhead cranes, forklifts, or specialized lifting frames and allow a single operator to safely move granite, quartz, marble, and porcelain slabs weighing 400-1,200+ pounds without manual lifting or edge-gripping clamps.
TL;DR
- Vacuum lifters use suction to grip and lift stone slabs safely
- Typical capacity: 500-2,000 lbs for countertop fabrication use
- Powered by electric or pneumatic vacuum pumps that maintain constant suction
- Cost: $3,000-$8,000 for standard units; $10,000+ for heavy-duty models
- Reduces slab handling injuries and edge chipping compared to clamps or slings
- Requires clean, flat surfaces to maintain proper seal
- Battery backup systems prevent slab drops during power interruptions

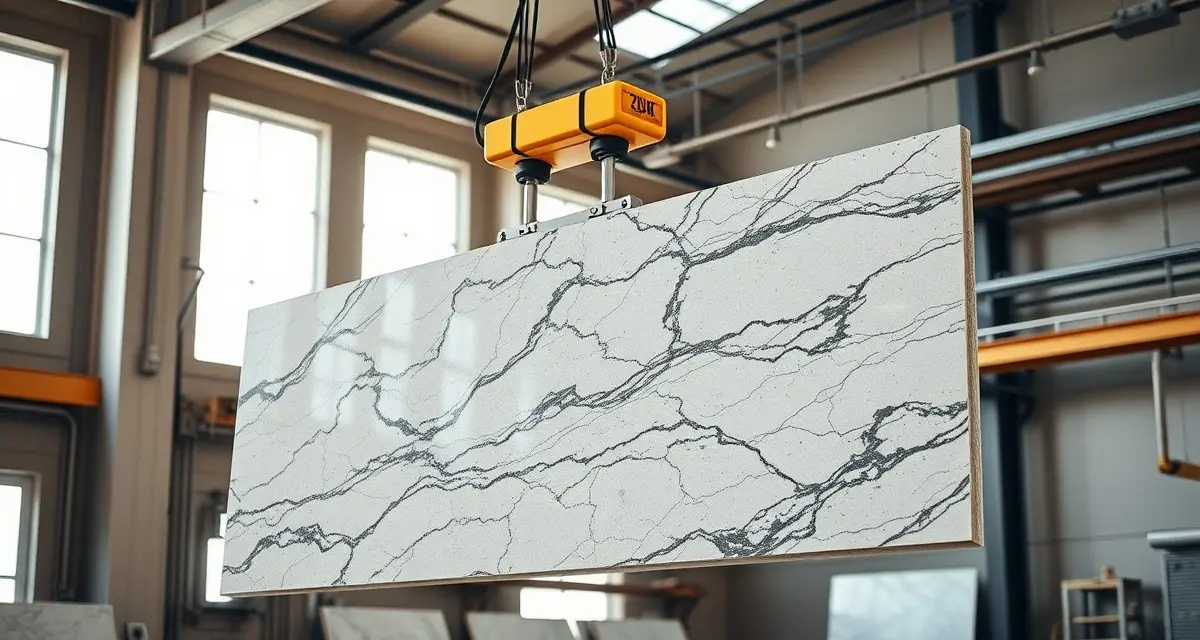

Vacuum Lifters in Countertop Fabrication
How Vacuum Lifters Work
A vacuum lifter operates on a simple principle: remove air between a suction pad and a flat surface to create a pressure differential that holds the slab firmly.
Components:
- Suction pads - Large rubber cups (usually 4-8 per lifter) that contact the slab surface
- Vacuum pump - Electric or pneumatic pump that removes air from the suction pads
- Vacuum gauge - Shows current suction level so the operator knows grip is secure
- Frame - Steel structure connecting the pads and providing attachment to the crane
- Controls - Operator interface to engage/release vacuum and tilt the slab
- Safety valve - Prevents accidental release; some units include audible low-vacuum alarms
- Battery backup - Maintains vacuum if primary power fails (critical safety feature)
The lifting sequence:
- Lower the vacuum lifter onto the slab surface
- Engage the vacuum pump - pads seal against the stone
- Verify vacuum gauge shows adequate pressure (typically 70-80% vacuum)
- Lift the slab using the overhead crane
- Move the slab to its destination
- Lower onto the target surface
- Release the vacuum to set the slab down
Types of Vacuum Lifters for Stone
| Type | Best For | Capacity | Price Range |
|---|---|---|---|
| Crane-mounted (horizontal) | Moving slabs flat between stations | 500-2,000 lbs | $3,000-$8,000 |
| Crane-mounted (tilt) | Moving slabs between vertical (A-frame) and horizontal (saw table) | 500-1,500 lbs | $5,000-$10,000 |
| Forklift-mounted | Loading/unloading trucks, moving bundles | 1,000-4,000 lbs | $5,000-$15,000 |
| Hand-carry cups | Moving finished pieces, small cuts | 50-200 lbs per cup | $50-$300 per cup |
| Install carry bars | Two-person carry for installation | 200-600 lbs | $300-$1,000 |
Tilt Vacuum Lifters
The most versatile option for fab shops is the tilt vacuum lifter. Slabs are stored vertically on A-frames but need to lie flat on CNC saws and fabrication tables. A tilt lifter grips the slab while vertical, lifts it clear of the A-frame, rotates it to horizontal, and sets it on the machine table - all controlled by one operator.
Hand-Carry Suction Cups
For moving finished countertop pieces (25-150 lbs for typical cut pieces), individual hand-carry suction cups are essential. Installers use these to carry finished countertops from the truck into the home and position them on cabinets. Each cup lifts 50-200 lbs, and two cups on a carry bar allow two people to move pieces safely.
Safety Considerations
Vacuum lifter failures - while rare - can be catastrophic. A 900-lb granite slab falling from crane height can cause fatal injuries.
Essential safety practices:
- Check vacuum gauge before every lift. Never lift with marginal vacuum pressure. If the gauge shows less than manufacturer-recommended pressure, inspect the pads and slab surface.
- Clean the slab surface. Dust, debris, water, and rough surfaces compromise suction. Wipe the contact area before placing the lifter.
- Verify battery backup. Test the backup battery monthly. A dead backup battery means a power outage drops the slab.
- Replace worn pads. Suction pads degrade over time - cracking, hardening, or losing flexibility. Replace on the manufacturer's schedule or when you notice reduced grip.
- Never walk under a suspended slab. Regardless of how secure the vacuum seems, treat a suspended slab like a suspended load - nobody underneath, ever.
- Respect the rated capacity. A 1,000-lb rated lifter should not lift a 950-lb slab. The margin exists for safety. Most manufacturers recommend limiting lifts to 80% of rated capacity.
Choosing the Right Vacuum Lifter
| Shop Size | Monthly Jobs | Recommended Setup |
|---|---|---|
| Small (5-10 jobs) | Freestanding gantry + basic horizontal lifter | $3,000-$5,000 |
| Mid-size (15-30 jobs) | Overhead crane + tilt lifter | $5,000-$10,000 |
| Large (30-60+ jobs) | Multiple cranes + tilt lifter + forklift lifter | $15,000-$30,000 |
All shops need hand-carry cups. Regardless of shop size, every installation crew needs individual suction cups ($50-$300 each) for carrying finished countertops on-site. Budget for 4-8 cups per install team.
Common Vacuum Lifter Problems
| Problem | Cause | Solution |
|---|---|---|
| Won't hold vacuum | Dirty or rough slab surface | Clean surface, check for cracks or pitting |
| Slow to achieve vacuum | Worn pads | Replace suction pads |
| Alarm sounding | Low vacuum pressure | Check pads, surface, and pump function |
| Uneven lift | Pads not centered on slab | Reposition lifter for balanced grip |
| Won't release | Vacuum valve stuck | Manual release valve, maintenance check |
Vacuum Lifters and Fabrication Workflow
Vacuum lifters are the physical link between your slab inventory and your production equipment. Every job requires at least two lifts: A-frame to CNC machine, and CNC machine to the next station. For a shop running 25 jobs per week, that's 50+ crane-and-lifter operations weekly.
The efficiency of these lifts depends on knowing which slab to pull next. When your production schedule clearly identifies the next job, the specific slab, and its A-frame location, the crane operator works with purpose. SlabWise connects your inventory system to your production schedule, so every slab pull is deliberate - no hunting across the shop, no pulling the wrong slab, no wasted crane time.
Frequently Asked Questions
How much does a vacuum lifter cost?
Standard crane-mounted vacuum lifters cost $3,000-$8,000. Heavy-duty and tilt models range from $5,000-$15,000. Hand-carry cups cost $50-$300 each.
Can a vacuum lifter work on rough stone surfaces?
Vacuum lifters require a relatively smooth, flat surface for proper seal. Rough, heavily textured, or leathered surfaces may not provide adequate suction. Test grip before lifting.
How often should vacuum lifter pads be replaced?
Follow the manufacturer's schedule, typically every 6-12 months for daily-use lifters. Replace immediately if you notice cracking, hardening, or reduced suction.
Do vacuum lifters need a power source?
Yes. Most use electric power (some use compressed air). All quality lifters include battery backup to maintain vacuum during power interruptions.
Can one person operate a vacuum lifter?
Yes. One of the primary benefits of vacuum lifters is single-operator capability for slab handling that would otherwise require a team.
What happens if the power goes out while lifting?
Quality vacuum lifters include battery backup that maintains suction for 15-60+ minutes during power loss, plus audible alarms to alert operators.
Are vacuum lifters OSHA compliant?
Vacuum lifters themselves are not directly regulated by OSHA, but their use falls under general lifting and material handling standards. Proper training, maintenance, and inspection are required.
Can vacuum lifters handle porcelain slabs?
Yes. Porcelain's smooth surface is ideal for vacuum grip. However, porcelain is more brittle than stone, so gentle handling during tilt operations is important.
What is the difference between a vacuum lifter and slab clamps?
Vacuum lifters grip the flat surface using suction. Slab clamps grip the edges. Vacuum lifters cause less edge chipping and work better for finished pieces.
How do I maintain a vacuum lifter?
Regular maintenance includes pad inspection/replacement, pump oil checks, battery testing, hose inspection, and frame/connection inspection per the manufacturer's schedule.
