Seams FAQ
Quick Definition
This seams FAQ answers the most common questions from fabricators and homeowners.
A seam is the joint where two pieces of countertop stone meet. Most kitchen countertops require at least one seam because standard slab sizes (typically 55" x 120" or 65" x 130") can't cover an entire L-shaped or U-shaped layout in a single piece. Seam quality is one of the biggest factors in customer satisfaction - a well-placed, tight seam is barely noticeable, while a poor seam becomes the focal point of every complaint. Professional fabricators aim for seams tighter than 1/16" (1.5mm), with color-matched epoxy filling the gap.
TL;DR
- Most kitchens need 1-3 seams depending on layout and slab size
- Professional seam standard: under 1/16" (1.5mm) gap filled with color-matched epoxy
- Seam placement affects both appearance and structural integrity
- L-shaped corners are the most common seam location - typically at a 45-degree miter or butt joint
- Seam visibility depends on material: quartz seams are hardest to hide, granite and marble can be matched to veining
- Seam placement should be discussed during templating, not discovered at installation
- AI nesting software can optimize seam locations for both material yield and appearance
- Homeowner #1 complaint about countertops: visible seams they weren't told about
Seam Basics
Why do countertops need seams?
Three main reasons:
-
Slab size limitations - Natural stone slabs average 55" x 120" (about 45 sqft). Engineered quartz slabs run slightly larger at up to 65" x 130" (about 58 sqft). Any countertop layout that exceeds a single slab's dimensions requires seams.
-
Transport and installation access - Even if a slab could theoretically cover the entire countertop, getting a 12-foot piece through a standard 36" doorway is often impossible. Seams allow pieces to be sized for access.
-
Structural considerations - Very long unsupported spans are more prone to cracking. Seams at stress points (like where an L-shaped counter changes direction) actually improve structural integrity.
| Kitchen Layout | Typical Seams Needed |
|---|---|
| Galley (one wall) | 0-1 |
| L-shaped | 1-2 |
| U-shaped | 2-3 |
| Island + perimeter | 2-4 |
| Large kitchen with island | 3-6 |
Where should seams be placed?
Seam placement follows both structural and aesthetic rules:
Best seam locations:
- At L-shaped or U-shaped corners (natural break point)
- Behind the sink (where daily view is limited)
- Aligned with cabinet seams below (structural support)
- Along natural vein lines in the stone (hides the seam visually)
Locations to avoid:
- Within 6 inches of a sink or cooktop cutout (structural weakness)
- In the middle of a highly visible run (conspicuous)
- At unsupported cabinet seams (no structural support below)
- Across prominent vein patterns (interrupts the visual flow)
The 6-inch rule: Industry standard says seams should be at least 6 inches from any cutout (sink, cooktop, faucet hole). Closer than that risks cracking during installation or use. Some fabricators use a more conservative 8-inch rule.
What types of seams exist?
The three main seam types used in countertop fabrication:
Butt seam (most common):
- Two straight edges meet at a 90-degree angle to the countertop surface
- Simple to fabricate and install
- Standard for most kitchen applications
- Visible as a thin line on the surface
Miter seam:
- Edges are cut at 45-degree angles and joined
- Creates an invisible seam from above on waterfall edges
- More complex to fabricate - requires 5-axis saw capability
- Used for waterfall edges and thick-look edges
Laminated seam:
- Two pieces are stacked and bonded to create a thicker appearance
- Used for decorative edge treatments
- More material and labor intensive
- Common on island edges and bar tops
Seam Quality
What makes a seam "good" or "bad"?
A professional countertop seam should meet these standards:
| Quality Factor | Good Seam | Poor Seam |
|---|---|---|
| Gap width | Under 1/16" (1.5mm) | Over 1/8" (3mm) |
| Level | Flush - no lip between pieces | One side higher than the other |
| Color match | Epoxy blends with stone color | Visible epoxy line, wrong color |
| Vein alignment | Veins continue across the seam | Veins misaligned or interrupted |
| Surface feel | Smooth when running finger across | Bump or gap you can feel |
| Structural | Properly supported below | Unsupported, prone to movement |
How are seams joined during installation?
The installation process for joining countertop seams:
- Dry fit - Both pieces are placed on cabinets without adhesive to verify alignment
- Leveling - Shims adjust each piece until the surfaces are perfectly flush across the seam
- Rodding - Steel reinforcing rods are epoxied into channels underneath the seam for structural support
- Edge preparation - Seam edges are cleaned and dried
- Epoxy application - Two-part color-matched epoxy is applied to both edges
- Clamping - Seam clamps pull the pieces together tightly
- Curing - Epoxy cures for the manufacturer-specified time (typically 15-30 minutes)
- Finishing - Excess epoxy is scraped and polished flush with the surface

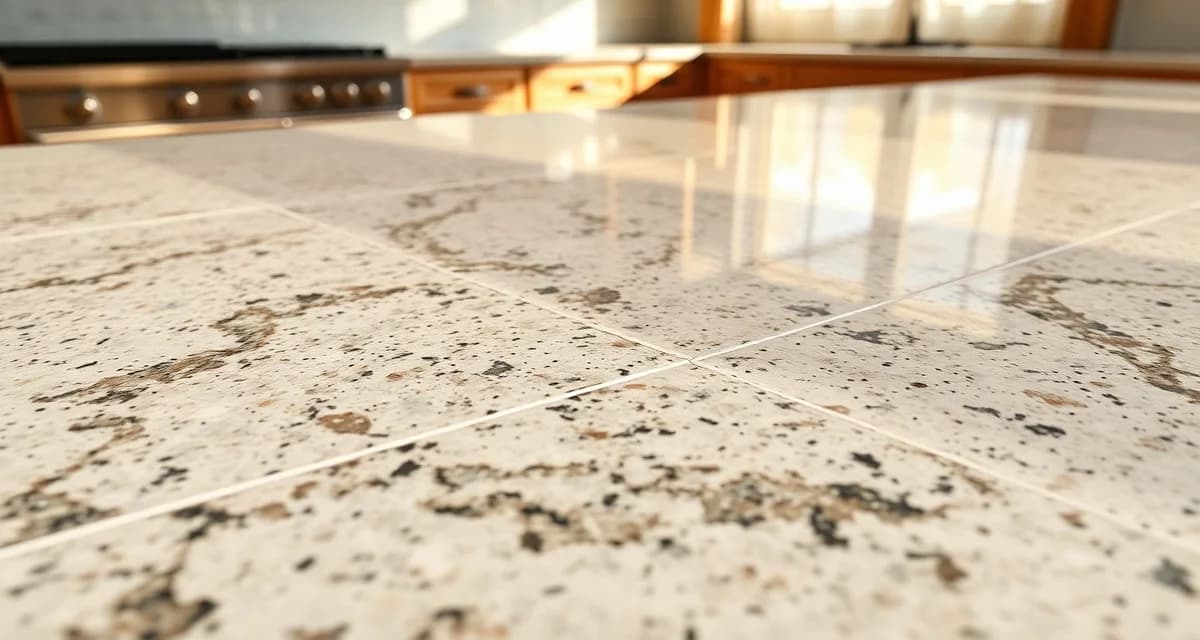

Can seams be made invisible?
Truly invisible? No. But a skilled fabricator can make seams nearly undetectable. The factors that determine seam visibility:
Most visible to least visible seams by material:
- Solid-color quartz - Hardest to hide. No veining to mask the seam line. The more uniform the color, the more a seam stands out.
- Lightly veined stone - Moderate difficulty. Some visual elements to align, but the seam is still noticeable.
- Heavily veined marble/quartzite - Easier to hide. If veins are carefully aligned, the seam disappears into the pattern.
- Speckled granite - Easiest to hide. The busy pattern camouflages the seam line effectively.
Techniques that minimize seam visibility:
- CNC-cut seam edges (tighter fit than manual cutting)
- Color-matched epoxy that matches the dominant stone tone
- Vein matching at the seam (requires careful layout planning during nesting)
- Polishing the cured seam to match the surrounding surface finish
For Fabricators
How does seam planning affect material yield?
Seam placement and material optimization are directly connected. Poor seam planning wastes material; smart seam planning improves yield:
Example: A kitchen with 55 sqft of countertop needs material from a 120" x 65" slab (about 54 sqft usable). With poor seam planning, you might need a second slab for a small piece. With optimized seam placement, you fit everything on one slab.
| Seam Planning Approach | Typical Yield | Material Cost Impact |
|---|---|---|
| No planning (seams wherever convenient) | 60-68% | Highest material cost |
| Manual planning by experienced fabricator | 68-75% | Moderate |
| AI nesting with seam optimization | 75-85% | Lowest material cost |
AI nesting software like SlabWise's slab optimization considers seam placement as part of the overall material layout - finding positions that both minimize waste and maintain seam quality standards. This dual optimization is difficult to do manually, especially on jobs with 3+ seams.
What tools are needed for seam fabrication?
Essential seam-making equipment for a professional shop:
| Tool | Purpose | Cost |
|---|---|---|
| CNC bridge saw | Precision-cut seam edges (straightness is critical) | Part of existing equipment |
| Seam setter/clamps | Pulls pieces together during bonding | $200-$800 per set |
| Color-matched epoxy kit | Fills and bonds the seam | $30-$80 per kit |
| Steel reinforcing rods | Structural support below the seam | $5-$15 per rod |
| Router for rod channels | Cuts channels for reinforcing rods | $200-$500 |
| Razor blade scraper | Removes excess cured epoxy | $5-$10 |
| Hand polisher | Final surface finishing at the seam | $200-$500 |
How do seam-related callbacks affect shop profitability?
Seam complaints are one of the top three reasons customers call back after installation. The cost of a seam callback:
- Minor adjustment (re-polish, re-epoxy): $100-$300 in labor and materials
- Seam redo (remove, re-cut, rejoin on site): $500-$1,500
- Full remake (if seam can't be fixed): $1,500-$4,000+
- Reputation damage: Negative reviews mentioning seam quality affect future business
Preventing seam issues starts during templating and nesting - not at installation. When seam locations are planned with both structural and aesthetic considerations from the start, callbacks drop significantly. Template verification software flags seam placements that violate the 6-inch cutout rule or that fall in structurally weak positions.
For Homeowners
Should I expect seams in my countertop?
If your kitchen has any of the following, plan on at least one seam:
- L-shaped or U-shaped counter layout
- Total countertop length over 10 feet on any run
- An island countertop
- Limited doorway or stairway access to the kitchen
Your fabricator should discuss seam placement during the templating visit, not spring it on you at installation. Ask to see the layout drawing showing where seams will be before fabrication begins.
Can I request where seams go?
Yes, and you should. During the templating visit, ask the fabricator to walk you through the proposed seam locations. You can request changes, though some constraints apply:
- Seams must be at least 6 inches from cutouts (non-negotiable safety standard)
- Seams need support from the cabinet structure below
- Moving a seam may require additional material (more waste = higher cost)
- Some locations are structurally necessary regardless of preference
A good fabricator will explain why seams are placed where they are and offer alternatives when possible.
How do I evaluate seam quality after installation?
Checklist for inspecting seams after your countertops are installed:
- Run your finger across the seam - It should feel smooth, with no lip or bump
- Look at the seam from different angles - It should be a thin, consistent line
- Check the color match - Epoxy should blend with the stone, not stand out as a different shade
- Verify seam locations match what was agreed - Compare to the layout drawing
- Look for gaps or voids - The seam line should be continuous, not broken or uneven
- Check from a normal viewing distance - Seams that are noticeable at 1 inch but invisible at 3 feet are within normal quality standards
Frequently Asked Questions
How visible are seams on quartz countertops?
Quartz seams tend to be more visible than natural stone seams because engineered quartz has more uniform color and pattern. Solid-color quartz (pure white, pure gray) shows seams most prominently. Quartz with veining patterns offers more camouflage. Discuss seam visibility expectations with your fabricator when choosing quartz, especially for lighter solid colors.
Can a countertop be made without any seams?
Sometimes. A simple galley kitchen with under 10 feet of straight countertop can often be fabricated from a single slab with no seams. But most kitchen layouts require at least one seam due to L-shapes, islands, or length. If avoiding seams is a priority, discuss this with your fabricator before material selection - some slabs are larger than others.
Do seams weaken the countertop?
When properly fabricated and supported, seams do not create a structural weakness. The combination of color-matched epoxy adhesive, steel reinforcing rods underneath, and support from the cabinet structure creates a strong joint. In fact, seams at corner points (L-shaped corners) can be stronger than a single piece spanning the same area, because the seam allows for thermal expansion without cracking.
How long do seam repairs last?
A properly installed seam should last the life of the countertop without needing repair. If epoxy at a seam cracks, discolors, or opens up within the first few years, it usually indicates an installation issue - improper bonding, lack of structural support, or movement in the cabinet structure below. Repairs using fresh color-matched epoxy typically last 5-10+ years.
Why is my seam darker/lighter than the surrounding stone?
This usually means the epoxy color doesn't quite match the stone. Epoxy is mixed with pigments to approximate the stone color, but a perfect match is difficult - especially on stones with complex coloring. Slight color differences are considered normal. If the mismatch is very noticeable, your fabricator can remove the existing epoxy and re-do the seam with a better color blend.
Can seams be relocated after installation?
No. Moving a seam requires removing the countertop pieces, re-cutting the edges, and reinstalling - essentially a partial remake. This is why seam placement should be confirmed and agreed upon before fabrication begins, not after installation. The templating stage is when seam decisions should be finalized.
Do outdoor countertop seams need special treatment?
Yes. Outdoor seams are exposed to UV light, temperature swings, and moisture that indoor seams aren't. Use UV-stable epoxy rated for exterior use (standard indoor epoxy will yellow and deteriorate in sunlight). Apply sealer more frequently at seam areas. Check seams annually for any opening caused by freeze-thaw cycles.
What is a "bookmatched" seam?
Bookmatching is a technique where consecutive slabs from the same block are placed so the veining mirrors across the seam - like opening a book. This is most dramatic with heavily veined marble or quartzite. Bookmatched seams can be stunning but require careful planning during slab selection, layout, and fabrication. It costs more because you need to purchase consecutive slabs from the same block and the nesting must align specific veining.
How thin can a seam be made?
CNC-cut seam edges can achieve gaps as tight as 1/64" (0.4mm) before epoxy fill. After epoxy and finishing, the visible line width depends on the material and the fabricator's skill. Most professional seams finish at 1/32"-1/16" (0.8-1.5mm) visible width. Anything under 1/16" is considered excellent quality.
Should I worry about seams on a bathroom vanity?
Most single-sink bathroom vanities (under 60") can be fabricated from a single piece with no seams. Double-sink vanities (72" and longer) may need one seam. Bathroom seams are generally less of a concern because vanities are viewed less critically than kitchen countertops and typically have shorter runs.
Do different edge profiles affect seam visibility?
Yes. Eased (square) edges show seam lines most clearly because the junction is visible from the front. Bullnose and rounded edges can slightly hide the seam line at the edge because the rounded profile draws the eye away from the junction point. Mitered edges on waterfall applications hide the seam from above. Discuss edge profile options with your fabricator if seam visibility is a concern.
Plan Better Seams With AI Nesting
Seam placement is a balance between material yield, structural integrity, and appearance. Manually optimizing all three is time-consuming and often results in compromises.
SlabWise's AI slab nesting considers seam placement as part of overall material optimization - finding layouts that minimize waste while maintaining proper seam distances from cutouts and aligning with visual elements in the stone. The result: 10-15% better material yield with seams that are both structurally sound and visually optimized.
Start your 14-day free trial and see how AI-optimized nesting improves both your yield and your seam placement.
