Complete Countertop Fabrication Process: Template to Installation
Countertop fabrication is the process of transforming raw stone slabs into finished, installed kitchen and bathroom surfaces. A typical residential project moves through 6 core stages: sales and quoting, material selection, templating, CNC programming and cutting, finishing, and installation. The entire process takes 5-15 business days from template to install, depending on material availability and shop capacity.
TL;DR
- The fabrication process includes 6 stages: quoting, material selection, templating, cutting, finishing, and installation
- Templating accuracy determines 90% of fit quality; digital templating has replaced most manual methods
- CNC bridge saws and routers handle the primary cutting; hand work is still needed for detailed finishing
- A standard kitchen takes 5-15 business days from template to installation
- Material waste ranges from 20-35% without optimization; AI nesting reduces this to 10-20%
- Remakes from template or fabrication errors cost $1,500-$4,000 per incident
- Quality control checkpoints at each stage prevent costly rework
Stage 1: Sales, Quoting, and Job Entry
Every fabrication job starts with a customer inquiry. Whether the lead comes from a homeowner, general contractor, designer, or builder, the first step is generating an accurate quote.
What Goes Into a Countertop Quote
A complete quote includes:
| Line Item | Details |
|---|---|
| Material | Stone type, color, brand, thickness (2cm or 3cm) |
| Square footage | Measured or estimated from drawings |
| Edge profile | Eased, beveled, bullnose, ogee, mitered, etc. |
| Cutouts | Sink, cooktop, faucet holes |
| Backsplash | Height (typically 4" or full-height), material match |
| Fabrication | CNC programming, polishing, seam work |
| Installation | Delivery, leveling, sealing, plumbing coordination |
| Extras | Tear-out, support brackets, corbels |
Traditional quoting takes 15-25 minutes per job as estimators look up material prices, calculate square footage from hand drawings, and manually add line items. Modern quoting tools have compressed this to under 3 minutes by pulling real-time material pricing and automating the math.
Job Entry and Work Orders
Once a customer signs off, the job moves into production planning. The work order captures:
- Customer contact info and site address
- Material selection with slab identification numbers
- Edge profiles and special instructions
- Template appointment date
- Target installation date
- Payment terms and deposit status
Shops that run on paper or disconnected spreadsheets lose an average of 3-5 hours per week to data re-entry and miscommunication between the office and the shop floor.
Stage 2: Material Selection and Procurement
How Slabs Are Sourced
Fabricators source stone slabs from three main channels:
- Direct from distributors: Companies like MSI, Daltile, Arizona Tile, and Cosentino maintain regional warehouses with thousands of slabs in stock.
- Direct import: Larger shops import containers of natural stone directly from quarries in Brazil, India, Italy, and China.
- Local stone yards: Smaller shops purchase from local distributors who hold inventory.
Slab Selection Considerations
Natural stone slabs (granite, marble, quartzite) are unique. No two slabs look identical. This creates both a selling opportunity and a production challenge:
- Lot matching: For larger kitchens requiring multiple slabs, matching color and veining across slabs from the same lot is critical
- Defects: Natural fissures, pits, and color inconsistencies must be identified before cutting
- Yield: A standard slab measures roughly 120" x 72" (about 55-60 sq ft). A 40 sq ft kitchen might use 65-75% of that slab depending on layout
- Remnant value: The leftover pieces from each slab can be used for bathroom vanities, small bars, or sold as remnants
Engineered quartz (Cambria, Silestone, Caesarstone) offers more consistency since it's manufactured, but color matching between slabs from different batches (known as "lots") still matters.
Inventory and Slab Management
Tracking slab inventory is one of the biggest operational headaches for fabrication shops. Each slab needs to be:
- Photographed and cataloged
- Measured for exact dimensions
- Assigned to specific jobs
- Located in the yard for easy retrieval
AI-powered slab nesting tools analyze the actual slab dimensions and job requirements to optimize how pieces are cut from each slab. This optimization typically improves material yield by 10-15%, which translates to significant savings when slabs cost $40-$120 per square foot.

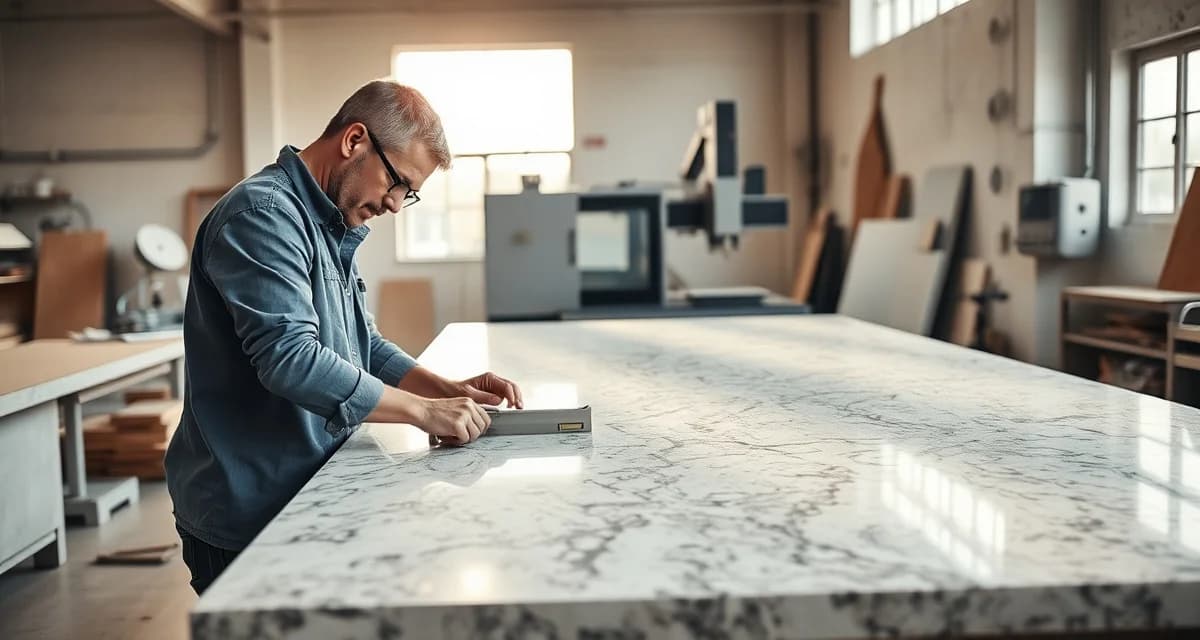

Stage 3: Templating
Templating is the most critical stage of fabrication. An inaccurate template means an inaccurate countertop, and an inaccurate countertop means a remake.
Digital Laser Templating
Most professional shops now use digital laser templating systems. The two major players are:
| System | Technology | Accuracy | Price Range |
|---|---|---|---|
| LPI Laser Templator | Laser projection + measurement | +/- 1/16" | $18,000-$25,000 |
| Proliner | Digital measuring device | +/- 1/32" | $15,000-$22,000 |
The digital templator captures the exact dimensions of the countertop area, including:
- Wall contours (walls are never perfectly straight)
- Cabinet layout and overhang measurements
- Sink and cooktop locations
- Backsplash heights
- Seam locations
- Outlet and switch locations
Digital templates export directly as DXF files that import into CNC software, eliminating manual data entry and the errors that come with it.
Manual Templating (Still Used in Some Shops)
Some shops still use physical template strips (thin wooden or plastic strips glued together on-site to create a physical outline). While this method works, it introduces human error at every step:
- Strip templates can shift during transport
- Measurements must be manually transferred to CAD
- Complex shapes are harder to replicate accurately
- The process takes 60-90 minutes per kitchen vs. 30-45 minutes with digital tools
Template Verification
Template errors are the leading cause of remakes. A single misread measurement of 1/4" on a sink cutout means the countertop won't fit around the undermount sink properly.
AI-powered template verification systems check templates against multiple data sources:
- Original quote dimensions vs. template measurements
- Standard sink cutout sizes vs. specified models
- Edge clearances and overhang consistency
- Seam placement relative to sink cutouts and corners
This 3-layer verification process catches errors that would otherwise become $1,500-$4,000 remakes discovered only during installation.
Stage 4: CNC Programming and Cutting
From Template to CNC Program
The digital template file (DXF) is imported into CAD/CAM software where a CNC programmer:
- Nests the pieces on the slab to maximize material usage
- Programs tool paths for cutting, edging, and cutouts
- Selects cutting tools (diamond blades for straight cuts, router bits for edges)
- Sets feed rates and speeds based on material type and thickness
- Simulates the cut to check for collisions or tool path errors
Primary Cutting Equipment
| Machine | Function | Cost Range | Accuracy |
|---|---|---|---|
| CNC Bridge Saw | Straight cuts and miters | $80,000-$350,000 | +/- 1/32" |
| CNC Router | Edge profiles and cutouts | $60,000-$200,000 | +/- 1/64" |
| Waterjet | Complex shapes and inlays | $100,000-$400,000 | +/- 0.005" |
| 5-Axis CNC | All operations in one machine | $250,000-$600,000 | +/- 1/64" |
The Cutting Process Step by Step
Step 1: Slab Loading The raw slab (weighing 800-1,200 lbs for a standard 3cm granite) is lifted onto the CNC saw bed using an overhead crane or vacuum lifter.
Step 2: Slab Alignment The slab is aligned and secured. Reference points are set so the CNC knows exactly where the slab edges are.
Step 3: Primary Cuts The bridge saw makes straight cuts to separate the slab into rough pieces matching each countertop section. Cuts are made with diamond-tipped blades running at 3,000-4,000 RPM with continuous water cooling.
Step 4: Edge Profiling The CNC router (or 5-axis machine) cuts the decorative edge profile. Common profiles include:
- Eased/Pencil: Simple rounded edge, most popular
- Beveled: 45-degree chamfer
- Half Bullnose: Rounded top edge
- Full Bullnose: Rounded top and bottom
- Ogee: S-curve decorative profile
- Mitered: Two pieces joined at 45 degrees for a thick-look edge
Step 5: Cutouts Sink and cooktop cutouts are routed with specialized bits. Undermount sink cutouts require precise radiused corners matching the specific sink model.
Step 6: Surface Finishing If the slab requires polishing, honing, or leathering, this happens on the fabrication line using progressive diamond pads (50, 100, 200, 400, 800, 1500, 3000 grit).
Stage 5: Quality Control and Finishing
Inspection Points
Before a countertop leaves the shop, it should pass these checks:
- Dimensional accuracy: All measurements match the template within tolerance (+/- 1/16")
- Edge quality: No chips, uneven spots, or tool marks
- Surface finish: Consistent polish or hone across all pieces
- Cutout accuracy: Sink and cooktop cutouts match specified dimensions
- Seam preparation: Mating edges are flat and will produce tight seams
- Color matching: All pieces from multi-slab jobs match acceptably
Hand Finishing
Despite CNC precision, most shops still require hand finishing for:
- Seam polishing: Final smoothing where pieces will join
- Inside corner radius: Hand-grinding tight inside corners the CNC can't reach
- Chip repair: Filling small chips with color-matched epoxy
- Touch-up polishing: Removing any handling marks
Packaging for Transport
Finished pieces are:
- Inspected one final time
- Labeled with the job number and piece identifier (e.g., "Island Left," "L-Section Right")
- Padded with foam or blankets
- Loaded on A-frames for vertical transport (stone is stronger in compression than tension)
Stage 6: Installation
Pre-Installation Preparation
The installation team checks the following before leaving the shop:
- All pieces are accounted for and undamaged
- Sink clips, adhesive, and caulk are packed
- Support brackets for overhangs are included
- Seam adhesive color has been mixed and approved
- The homeowner has confirmed plumbing disconnect
On-Site Installation Process
Step 1: Old countertop removal (if applicable) - 30-60 minutes Disconnect plumbing, remove old tops, inspect cabinets for level and damage.
Step 2: Dry fit - 20-40 minutes Set all pieces in place without adhesive to verify fit. Check seam alignment, overhang consistency, and backsplash fit against walls.
Step 3: Permanent installation - 60-120 minutes Apply adhesive to cabinet tops, set pieces, join seams with color-matched epoxy, and clamp until cured. Install undermount sink clips. Apply silicone at wall-to-countertop joints.
Step 4: Final touches - 20-30 minutes Level check, final seam polishing, clean-up, apply sealer (for natural stone), reconnect plumbing, and customer walkthrough.
Installation Timeline
A standard kitchen installation takes 2-4 hours. Complex kitchens with islands, waterfalls, and full-height backsplashes can take a full day.
Common Problems and How to Prevent Them
| Problem | Cause | Cost to Fix | Prevention |
|---|---|---|---|
| Template error | Mismeasurement | $1,500-$4,000 | Digital templating + AI verification |
| Slab breakage | Improper handling | $800-$3,000 | Proper A-frame transport, vacuum lifters |
| Color mismatch | Different slab lots | $2,000-$5,000 | Same-lot selection, customer approval |
| Seam visibility | Poor placement or prep | $500-$1,500 | CNC seam prep, proper epoxy match |
| Chip during install | Impact damage | $200-$800 | Foam padding, careful handling |
| Out of level | Cabinet issues | $300-$600 | Pre-install level check, shimming |
How Technology Is Changing Fabrication
The fabrication process has shifted dramatically in the last decade. Here's where technology makes the biggest impact:
| Traditional Process | Modern Process | Improvement |
|---|---|---|
| Manual quoting (20 min) | AI-assisted quoting (3 min) | 85% faster |
| Physical templates | Digital laser templates | +/- 1/32" accuracy |
| Hand-drawn nesting | AI slab nesting | 10-15% better yield |
| Paper work orders | Digital job management | 3-5 hrs/week saved |
| Phone status updates | Customer portal | 70% fewer calls |
| Manual QC inspection | AI template verification | 90%+ error catch rate |
For a shop processing 60-80 jobs per month, these improvements translate to $3,000-$8,000 in monthly savings from reduced waste, fewer remakes, and less administrative overhead.
FAQ
How long does countertop fabrication take from start to finish?
The typical timeline from signed contract to installation is 5-15 business days. Template day to install usually runs 7-10 business days. Factors that extend this include material availability, complex designs, and shop backlog.
What's the difference between 2cm and 3cm countertops?
2cm (3/4 inch) slabs are thinner and lighter but require plywood substrate support on cabinets. 3cm (1-1/4 inch) slabs are the US standard for most residential installations and span directly on cabinets without substrate. 3cm costs 20-40% more per sq ft.
How accurate is CNC cutting vs. hand cutting?
CNC machines achieve tolerances of +/- 1/32" to 1/64", while skilled hand cutting typically achieves +/- 1/8". For complex edge profiles and sink cutouts, CNC consistency is unmatched.
What causes countertop seams to be visible?
Visible seams result from poor seam placement (across veining rather than along it), uneven mating surfaces, incorrect epoxy color matching, or material variations at the seam location. Good fabricators place seams at natural break points and use CNC-prepared edges for tight fits.
How much stone is wasted during fabrication?
Without optimization, fabrication waste ranges from 20-35% of the raw slab. AI-powered nesting algorithms reduce waste to 10-20% by calculating the most efficient arrangement of all pieces across available slabs.
Can a cracked or chipped countertop be repaired?
Small chips (under 1/4") can be filled with color-matched epoxy. Cracks up to 6" can sometimes be stabilized with epoxy injection. Larger damage usually requires piece replacement rather than repair.
What's the most common fabrication error?
Template measurement errors account for roughly 60% of all remakes. The second most common is miscommunication about material selection or edge profiles between the office and the shop floor.
How much does a countertop remake cost?
A full piece remake costs $1,500-$4,000 depending on material and size. This includes new material, refabrication time, removal of the incorrect piece, and reinstallation. Most shops absorb this cost, making error prevention critical to profitability.
Why do some fabricators charge more than others?
Price differences reflect material quality (origin and grade), equipment precision (CNC vs. hand-cut), quality control processes, warranty terms, included services (sealing, plumbing reconnection), and business overhead (insurance, showroom).
What should I expect during the template appointment?
A templator will spend 30-60 minutes measuring your countertop area with a laser device or physical strips. They'll confirm sink and cooktop positions, edge profiles, backsplash details, seam placement, and overhang preferences. Cabinets must be fully installed and level before templating.
